CPUs, cores, and clock speeds

The Role of CPUs in HPC

In high performance computing, the CPU is still the central component that executes most instructions. Even when GPUs and other accelerators are present, CPUs orchestrate the work, manage memory, and run the operating system. For beginners, it is useful to understand three tightly connected ideas: what a CPU is, what a core is, and what a clock speed tells you about performance.

A CPU, or central processing unit, reads instructions, performs arithmetic and logical operations, decides what to do next, and coordinates data movement with memory and other devices. Modern CPUs used in HPC are typically 64 bit, support vector instructions, and contain multiple cores on a single physical chip. They are designed to execute many instructions per second, but the way they achieve this is not simply by running at higher and higher clock speeds.

In an HPC cluster, you will often request resources in terms of nodes and cores, and you will see CPU models and frequencies in job output and system descriptions. Understanding this vocabulary lets you make better choices when writing code, selecting compiler options, and sizing jobs.

Multicore CPUs and Cores

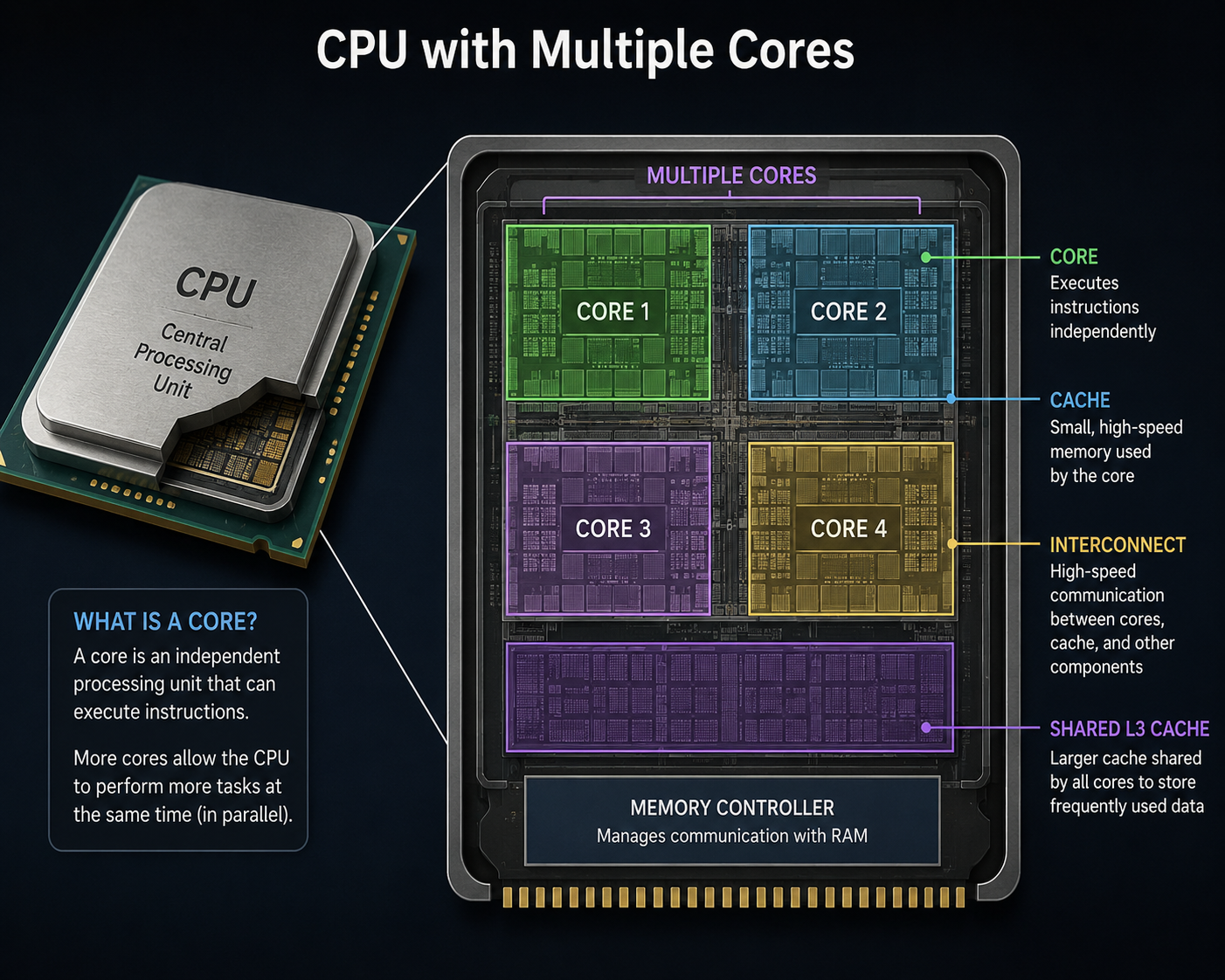

Early CPUs had a single core, so one physical package could execute only one instruction stream at a time. Today, almost all CPUs found in HPC systems are multicore, which means that one physical processor package contains several cores, each capable of executing its own instruction stream independently.

A core is the basic compute engine inside a CPU. Each core has its own arithmetic and logic units, some private registers, and usually some private cache levels. Multiple cores on the same chip share certain higher level cache and memory resources, but they can run separate threads or processes concurrently.

HPC systems typically have:

1. One or more CPU sockets per node, each socket holding one physical CPU package.
2. Several cores per CPU package, often tens of cores.
3. A total number of cores per node given by the product of sockets and cores per socket.

For example, a node might have 2 sockets, each with a 32 core CPU, for a total of 64 cores per node. When you request resources from a job scheduler, you might ask for 4 nodes and 32 cores per node, and those cores are individual compute units within the CPUs.

It is important to distinguish between:

Physical CPUs or sockets, which are the physical packages on the motherboard.

Cores, which are independent execution engines within each CPU.

Logical or hardware threads, which appear as separate execution contexts per core when features such as simultaneous multithreading (often called hyperthreading on some architectures) are enabled.

In practice, HPC users often talk about “cores” as the unit of parallel execution, and higher level parallel models such as MPI processes or OpenMP threads are mapped onto these cores.

Clock Cycles and Clock Speeds

A CPU operates on a discrete time base provided by a clock signal. Each tick of this clock is a clock cycle. Instructions and data move through the CPU’s internal circuits in steps that are synchronized with the clock.

The clock speed, or clock frequency, tells you how many clock cycles occur per second. It is usually measured in gigahertz, abbreviated GHz. One gigahertz is one billion cycles per second:

$$ 1 \,\text{GHz} = 10^9 \,\text{cycles per second}. $$

A CPU with a clock speed of 3.0 GHz has

$$ 3.0 \times 10^9 \,\text{cycles per second}. $$

If an operation takes $N$ cycles, the time for that operation on a CPU with clock frequency $f$ is approximately:

$$ t = \frac{N}{f}. $$

Here $t$ is the time in seconds and $f$ is the clock frequency in cycles per second. Higher frequency means shorter time for a fixed number of cycles.

However, modern CPUs execute multiple instructions in flight through pipelines and can often start a new instruction every cycle. This is why performance is often described in terms of instructions per cycle, or IPC. The effective instruction rate is then:

$$ \text{Instructions per second} = \text{IPC} \times f. $$

Clock speed is only part of the story. Real performance depends on both $f$ and IPC, as well as memory behavior and parallelism. Two CPUs with the same clock speed can have very different performance if one has a higher IPC or better memory subsystem.

Interpreting CPU Frequencies in HPC

When you inspect an HPC node description, you might see something like “2 × 32 core CPUs @ 2.6 GHz.” The “@ 2.6 GHz” usually refers to the nominal base clock frequency of each core. Actual behavior is more complex, because modern CPUs support features such as turbo frequencies and dynamic frequency scaling.

The base frequency is the guaranteed clock speed under typical conditions and load. The turbo or boost frequency is a higher frequency that some cores can reach temporarily when there is thermal and power headroom. The actual frequency during your job can vary over time depending on load, power limits, and temperature.

For HPC applications, this has several implications.

First, two clusters with the same CPU model might show slightly different measured performance because one is configured with more aggressive turbo policies or higher power limits.

Second, applications that fully load all cores for long periods often run closer to base frequency than the advertised maximum turbo frequency.

Third, bursting workloads with intermittent high activity might benefit more from turbo, since only a subset of cores are fully active at any given moment.

From a user perspective, when you estimate performance or compare nodes, treat the base frequency as the more reliable figure. Turbo behavior should be seen as a best case that you may not always reach, especially in large parallel runs.

Cores, Clock Speed, and Total Node Performance

In HPC, we are usually interested in the total performance of a node or a cluster, not just a single core. If you have $C$ cores per node, each with frequency $f$ and an average IPC of $I$, then a rough upper bound for scalar instruction throughput of one node is:

$$ \text{Instr/sec per node} \approx C \times I \times f. $$

This very simple model assumes that all cores are fully utilized and not stalled by memory or I/O. Real applications may achieve much less, but this formula helps illustrate a central point: total node performance increases with both the number of cores per node and the per core instruction rate.

Suppose Node A has 16 cores at 3.0 GHz, and Node B has 32 cores at 2.3 GHz. If the average IPC is similar, then Node B has more total instruction capacity, even though each core is slower in clock speed terms. For parallel workloads that scale well across cores, more cores at slightly lower frequency can outperform fewer faster cores.

However, for single threaded or poorly scaling code, the opposite is true. A single fast core might be better than many slow cores. High single core frequency and IPC matter if the bottleneck is a serial section of the code, or if the code is not parallelized.

In practice, HPC centers often choose CPUs with many cores at moderate frequencies, because the goal is to maximize throughput across many parallel jobs or tasks, not just single threaded performance.

The Power and Thermal Limits of Clock Speeds

Clock speed and power consumption are tightly related. Dynamic power for a CPU core can be approximated as:

$$ P \propto C_L \times V^2 \times f, $$

where $C_L$ is an effective capacitance, $V$ is the supply voltage, and $f$ is frequency. When you increase frequency, you often need a higher voltage, so power increases more than linearly with frequency.

There are two important consequences in HPC.

First, very high clock speeds are limited by power and heat. Running many cores at very high frequencies would exceed the thermal and power budget of a chip or a node. This constraint is one reason why CPU frequency stopped climbing as fast as in the past, and why processor designers turned to more cores and wider vector units instead.

Second, modern CPUs dynamically adjust frequency to stay within power and thermal limits, especially in tightly packed HPC systems with many nodes and constrained cooling. Under high load, the actual frequency can be lower than the maximum rated values to keep the system within safe operating conditions.

From a programmer’s perspective, this means that optimizing your code to reduce unnecessary operations, minimize memory stalls, and use vectorization can allow the CPU to work more efficiently within the same power budget. More efficient code can complete the same work in less time even if the nominal clock speed is unchanged.

Cores, Threads, and Simultaneous Multithreading

Some CPU architectures support simultaneous multithreading, SMT, which allows a single physical core to present multiple logical threads to the operating system. For example, a core might support 2 hardware threads, so a 32 core CPU appears as 64 logical CPUs.

SMT does not double the raw compute units inside the core. Instead, it lets the core keep its pipelines busier by switching between hardware threads when one is stalled, for example waiting on memory. If one thread is waiting for data from memory, another thread can use the arithmetic units, and overall utilization can improve.

In HPC, SMT affects how you interpret “cores” in job scripts and how you bind processes or threads to hardware. For some workloads, enabling SMT can give a modest performance improvement because it hides memory latency. For others, especially those that already saturate the core’s functional units, SMT can hurt performance by increasing contention for shared resources.

When you see that a node has 64 logical CPUs but 32 physical cores, remember that each pair of logical CPUs shares the same physical core and typically some private caches. If you request “64 tasks” and map one process per logical CPU, you are using SMT. If you request “32 tasks” and bind each to a separate core, you are not.

How to best use SMT is application dependent, and detailed exploration belongs to other chapters. Here, the key is to understand that logical CPUs reported by the operating system do not always equal physical cores.

Using CPU Information in Practice

On a Linux based HPC system you can inspect CPU models, core counts, and frequencies with commands such as lscpu or by reading /proc/cpuinfo. For instance, lscpu can show you:

The model name of the CPU.

The number of sockets, cores per socket, and threads per core.

The base and maximum clock frequencies.

This information helps you answer practical questions.

How many cores can I use on this node?

What is the physical meaning of a “core” in the job scheduler?

Is this CPU optimized for high core count or high clock speed?

When you compile and run codes, it is useful to know whether you are on a CPU model with many cores and moderate frequency or fewer cores and higher frequency. It influences whether you prioritize aggressive parallelism across many cores, or whether you focus on single thread optimization and vectorization.

It also affects performance expectations. If you move from a workstation with 8 cores at 4.0 GHz to an HPC node with 64 cores at 2.2 GHz, one single threaded job may run slower on the HPC node. The HPC node is designed to run many parallel tasks at once, not to maximize single thread speed. To benefit fully, you must use the available cores concurrently.

Summary of Concepts for HPC Beginners

CPUs remain the central processing elements in HPC, coordinating work and executing instructions. They contain multiple cores, and each core is an independent execution engine.

Clock speed, measured in GHz, gives the number of cycles per second, but performance depends not only on frequency, it also depends on how many instructions per cycle the CPU can execute and how well your code uses caches and parallel resources.

Multicore architectures and features like SMT make it possible to run many threads or processes in parallel, which is essential for HPC applications. At the same time, power and thermal limits constrain how far clock speeds can be pushed, which has led to designs that favor more cores over ever higher frequencies.

When working on an HPC system, interpreting terms like “cores per node,” “clock speed,” and “threads per core” correctly is fundamental. It lets you use resources efficiently and build an intuition for how your jobs and programs will behave on different architectures.
